Equipment of Spanish plants
Best equipped in Spain.
A wide range of slitting and cutting-to-length equipment plus associated cutting centers ensure a richly diversified product range. Make the most of our processing lineup and continuously expanded equipment to meet your processing needs for thicknesses of between 0.30 to 3 mm in El Puig. Whether it is standard grades to customer dimensions or customer-specified high-strength steels for downstream processing, we can supply whatever you want.
We're here for you. Not only in Spain, but also throughout Europe.

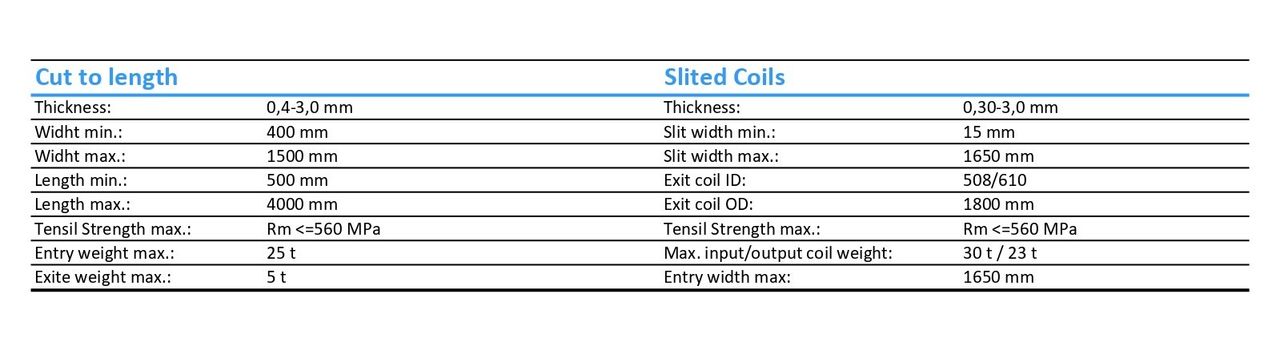

| Cut to length | Slit strip | ||
| Thickness: | 0,40 - 3,0 mm | Thickness: | 0,30 - 3,0 mm |
| Width min.: | 400 mm | Slit width min.: | 15 mm |
| Width max.: | 1500 mm | Slit width max.: | 1650 mm |
| Length min.: | 500 mm | Exit coil ID: | 508/610 |
| Length max.: | 4000 mm | Exit coil OD: | 1800 mm |
| Tensil Strength max.: | Rm <=560 MPa | Tensil Strength max.: | Rm <=560 MPa |
| Entry weight max.: | 25 t | Max. input/output coil weight: | 30 t / 23 t |
| Exit weight max.: | 5 t | Entry width max: | 1650 mm |
